Andeen-Hagerling DCOAX Cable

ANDEEN-HAGERLING

DCOAX

Cable

Dual, Low Noise, Coaxial Cable Optimized For Three-Terminal Capacitance Measurements

Very high precision, three-terminal capacitance measurements can be affected by the self-inductance of the test cables, mainly at higher capacitance values. Magnetically induced noise can also reduce the quality of measurements. The cable now offered by Andeen-Hagerling both minimizes these problems and provides a way to standardize the residual self-inductance. High precision calibration measurements can now use a standard one meter length of test cable to minimize and standardize cable induced errors.

Outstanding Features

Low triboelectric noise
Minimizes self-inductance at frequencies below 1 MHz
Minimizes the enclosed area to reduce pickup from magnetic fields
Rib on one half cable allows easy identification
Shielding is 100% using foil and copper braid construction
Center conductor is equivalent to 20 gauge to minimize resistance
Good flexibility makes it suitable for test leads
Easily zippable

Specifications and Cross-Section View
Capacitance of one cable half: 106 picofarads/meter Center resistance of one cable half: 36 milliohms/meter Shield resistance of one cable half: 14 milliohms/meter Loop inductance at 1 kHz: 1.1 microhenries/meter

Ordering Information	Order Number

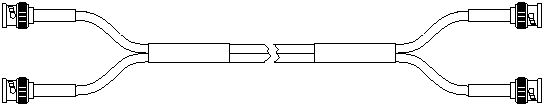

Standard one meter calibration cable	DCOAX-1-BNC
Made-to-length BNC cable	DCOAX-(length in meters)-BNC
Cable without connectors	DCOAX-(length in meters)
